Focus Shots















Standard Equipment

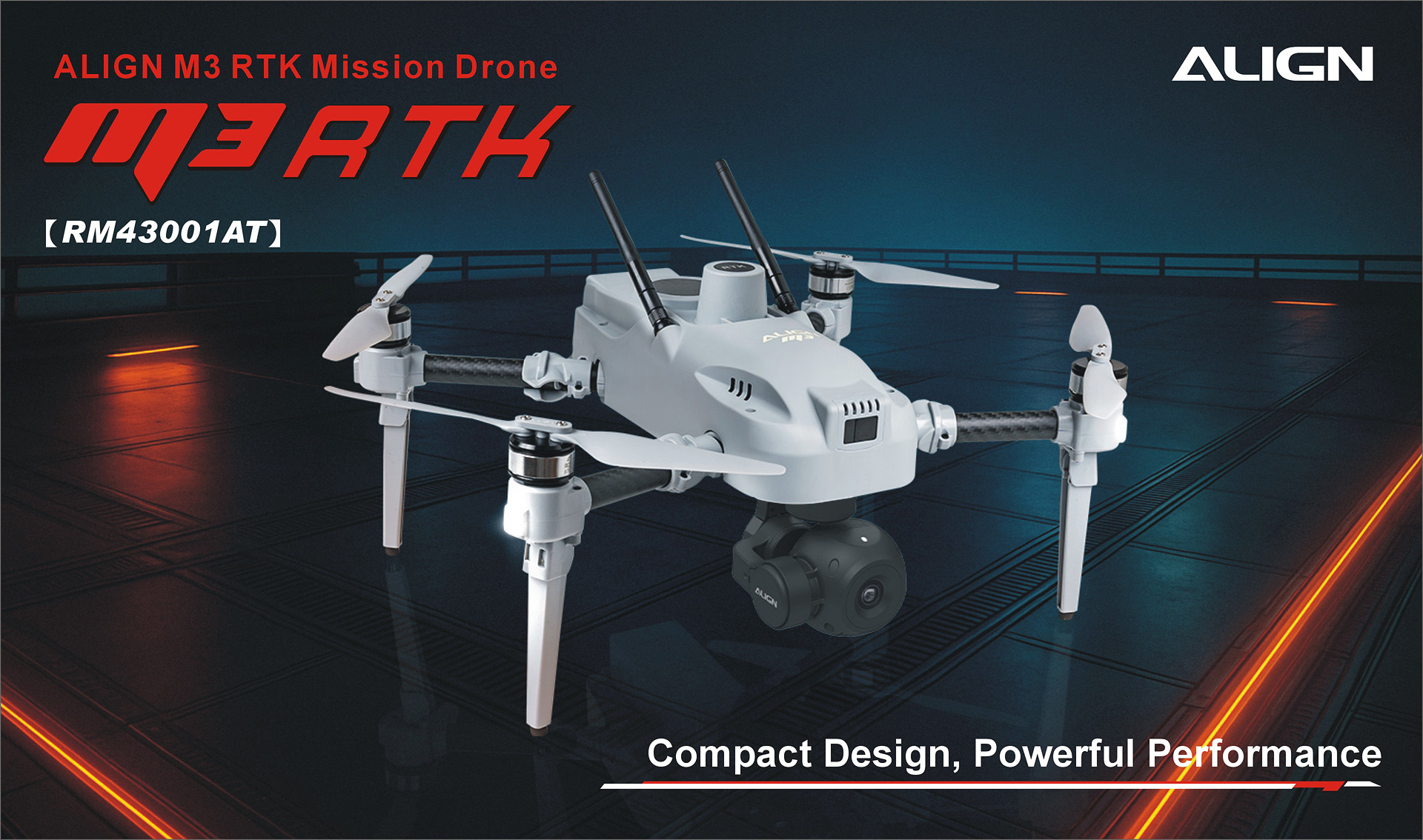

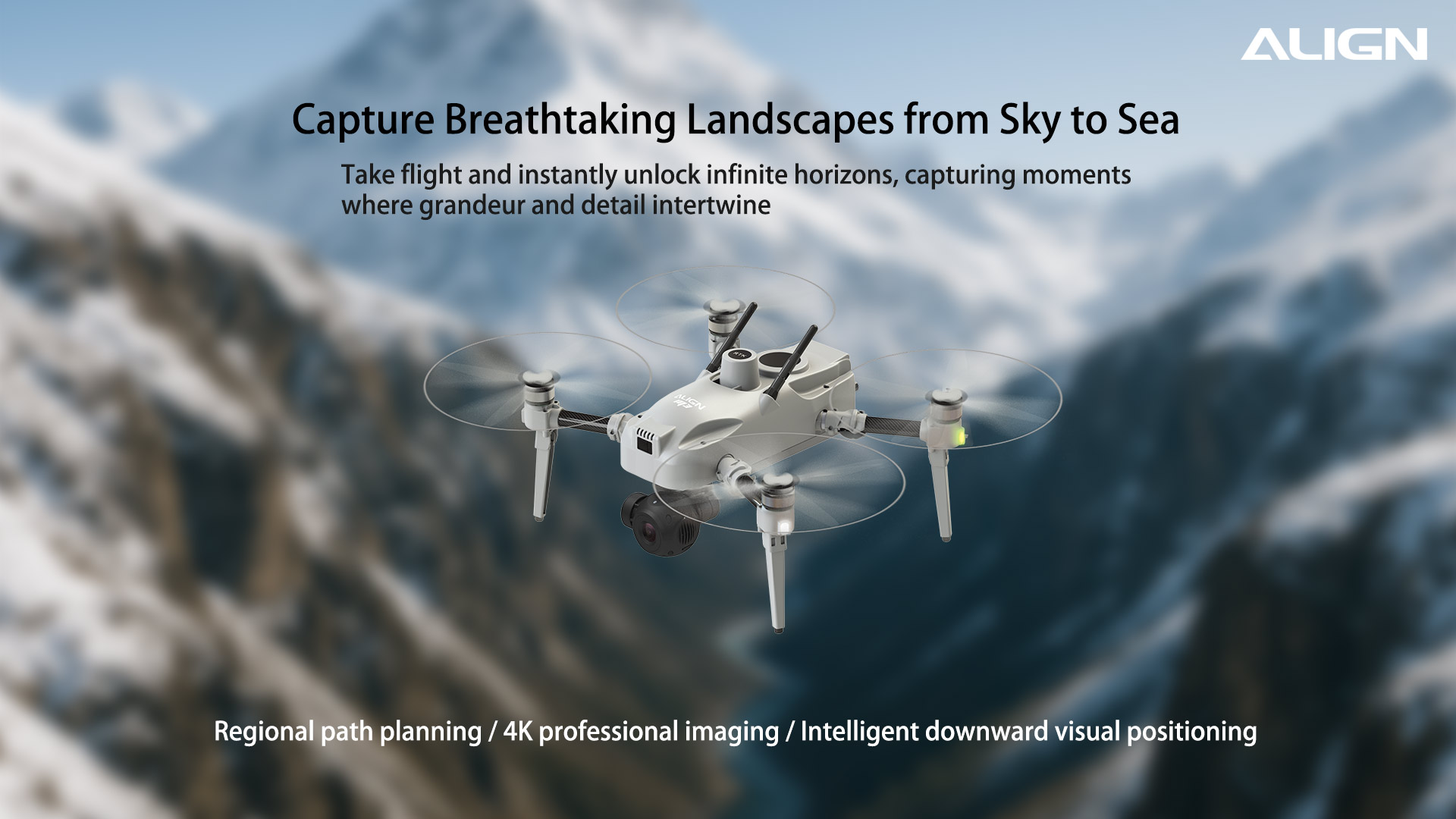

●M3 Mission Drone Kit Set x 1

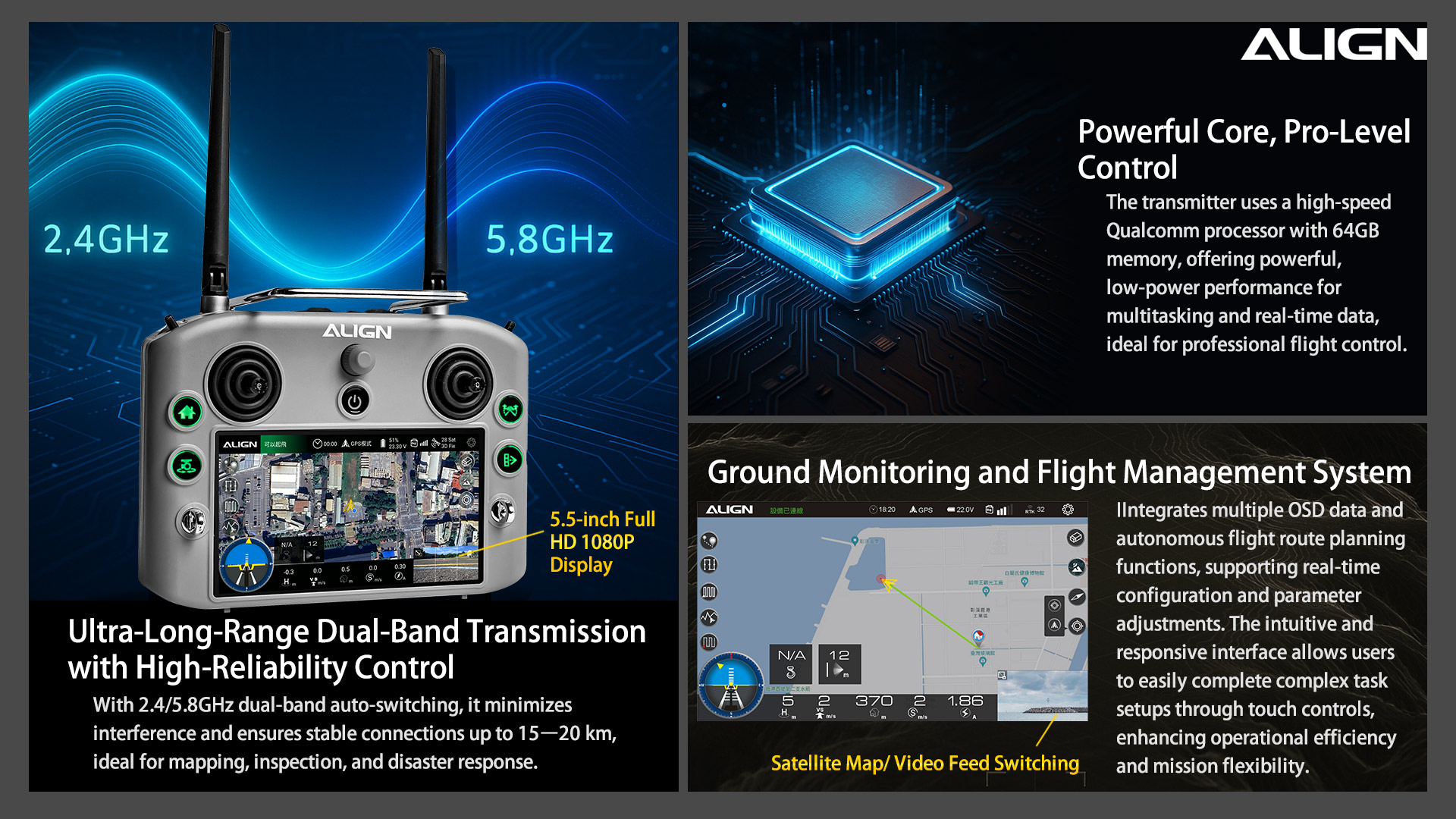

●5.5-inch Transmitter x 1

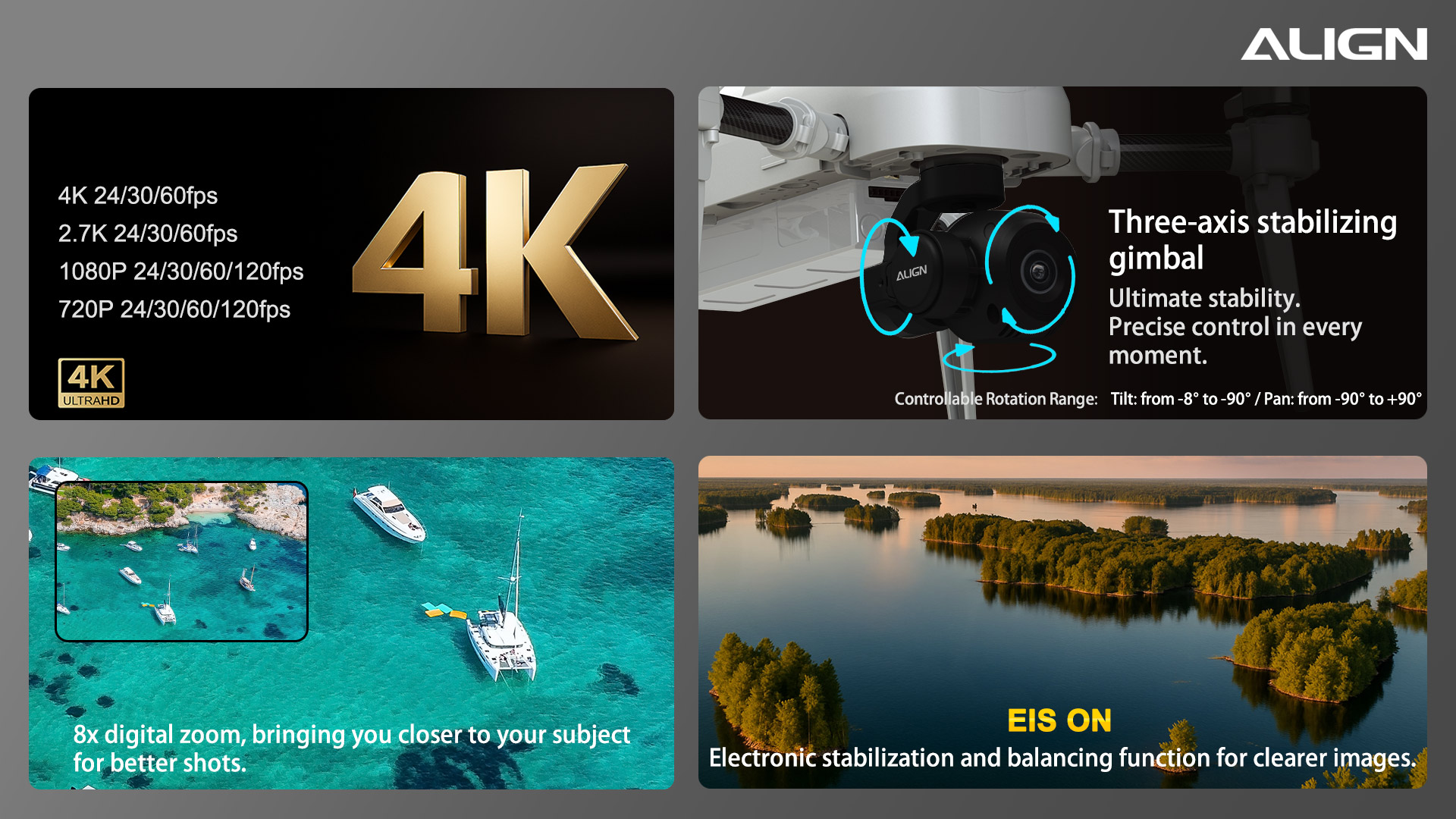

●G3P V3 4K Tri-axis Gimbal x 1
●RTK module with helical antenna x 1

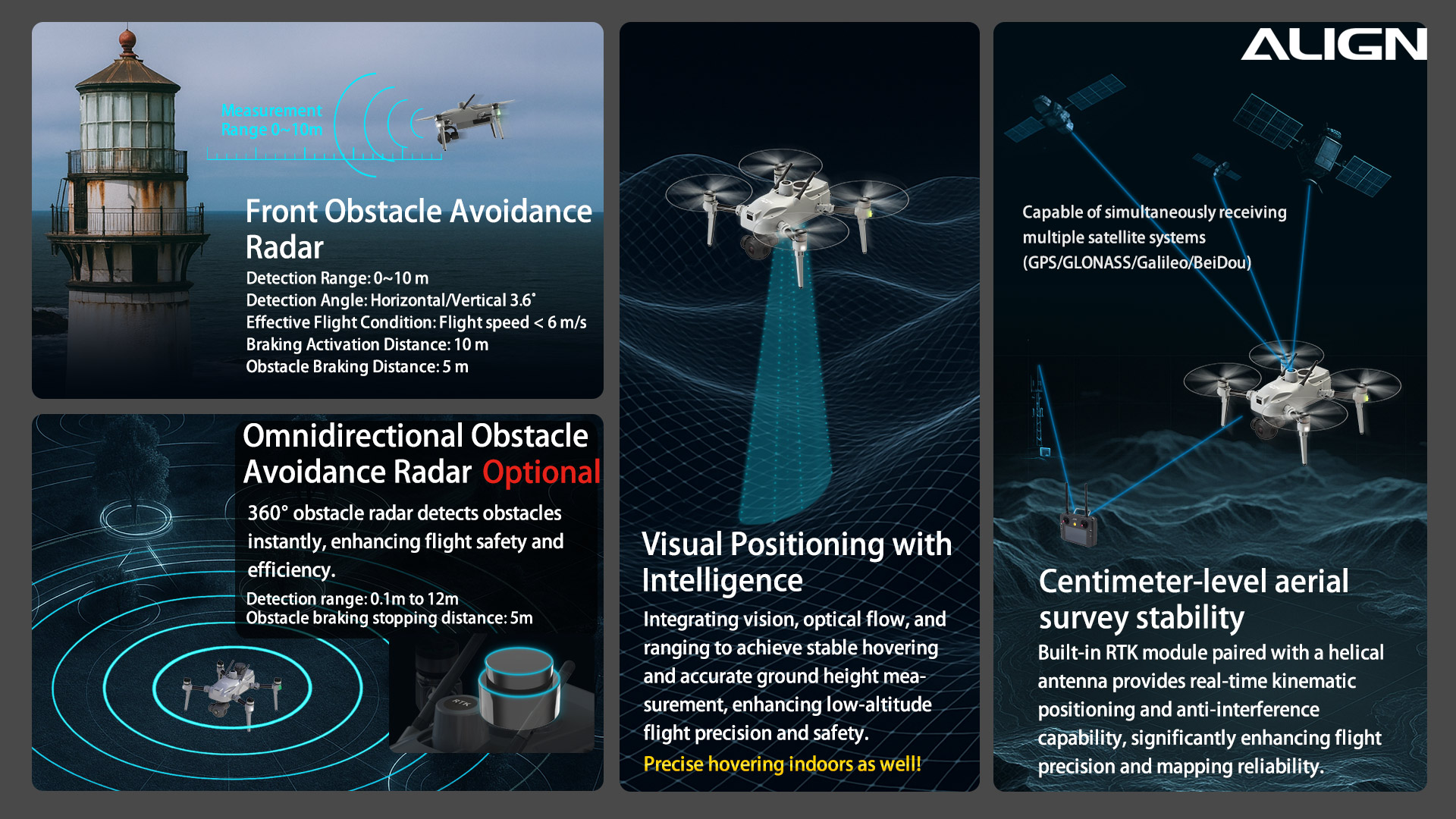

●Front Obstacle Avoidance Radar x 1
●Downward Visual Positioning x 1
●Ground Station App (with built-in manual Exam Mode / automatic area planning functions)

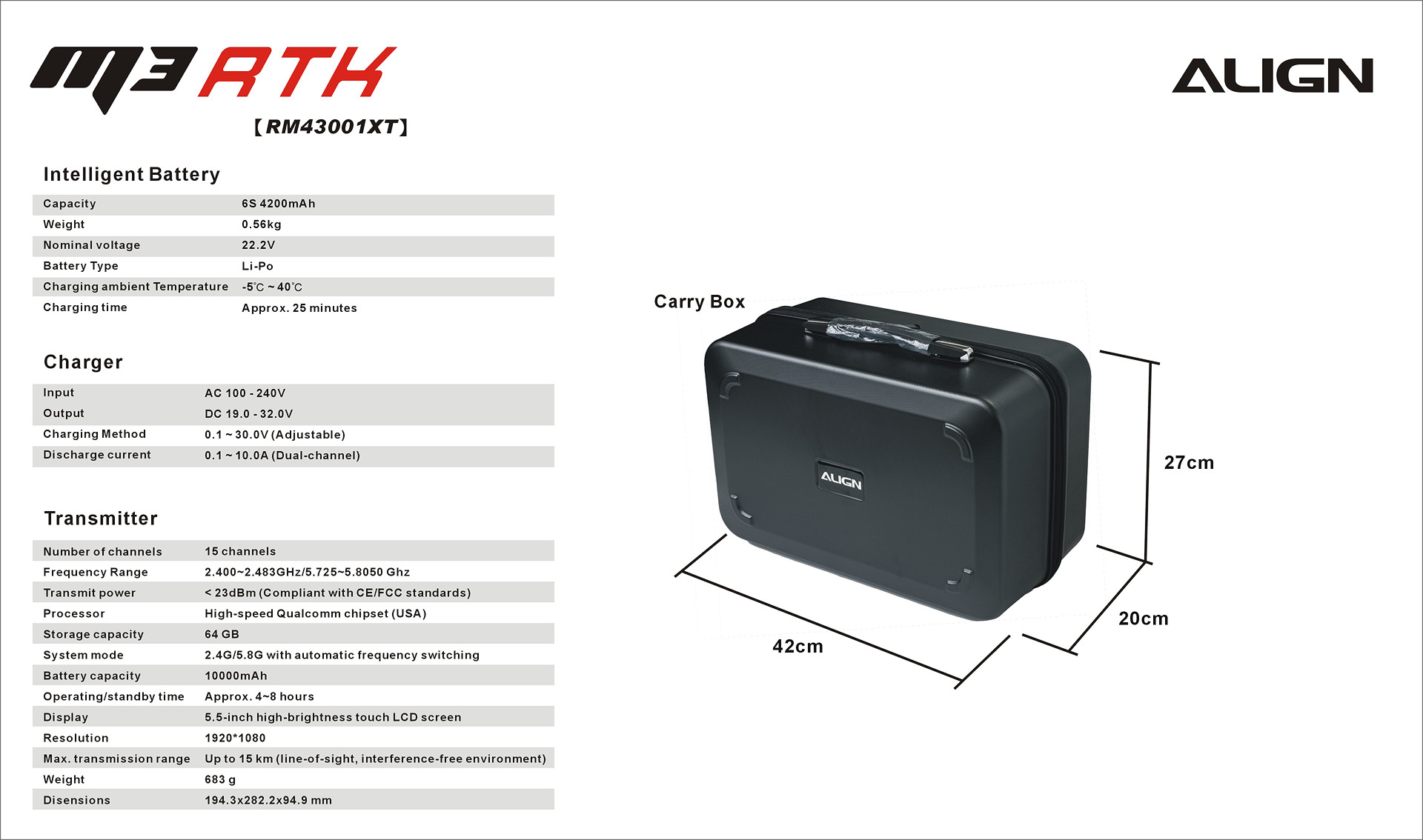

●6S 4200mAh Intelligent Battery x 1
●Charger x 1

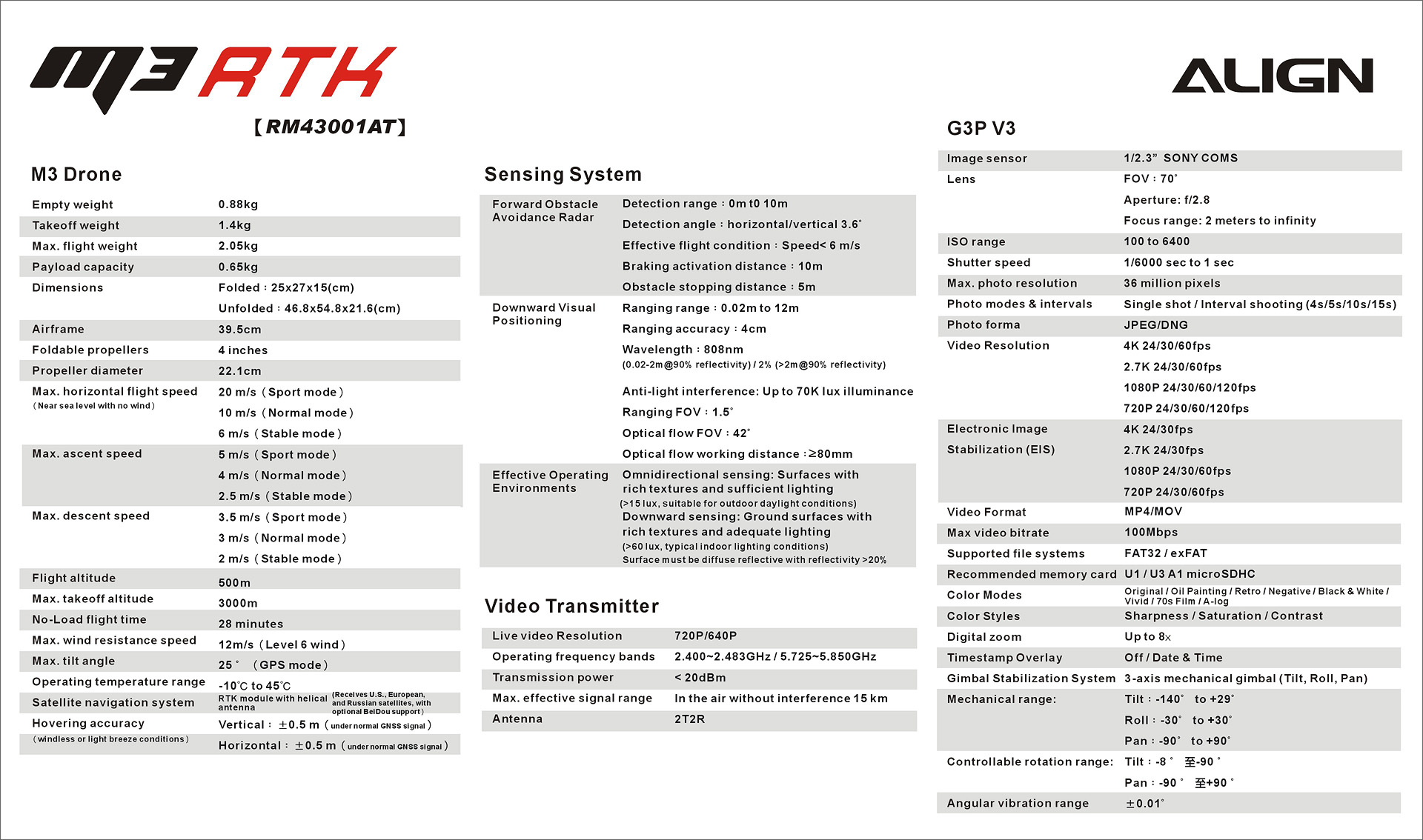

ALIGN M3 RTK Product Specification

●Empty weight：0.88kg
●Takeoff weight：1.4kg
●Max. flight weight：2.05kg
●Payload capacity：0.65kg

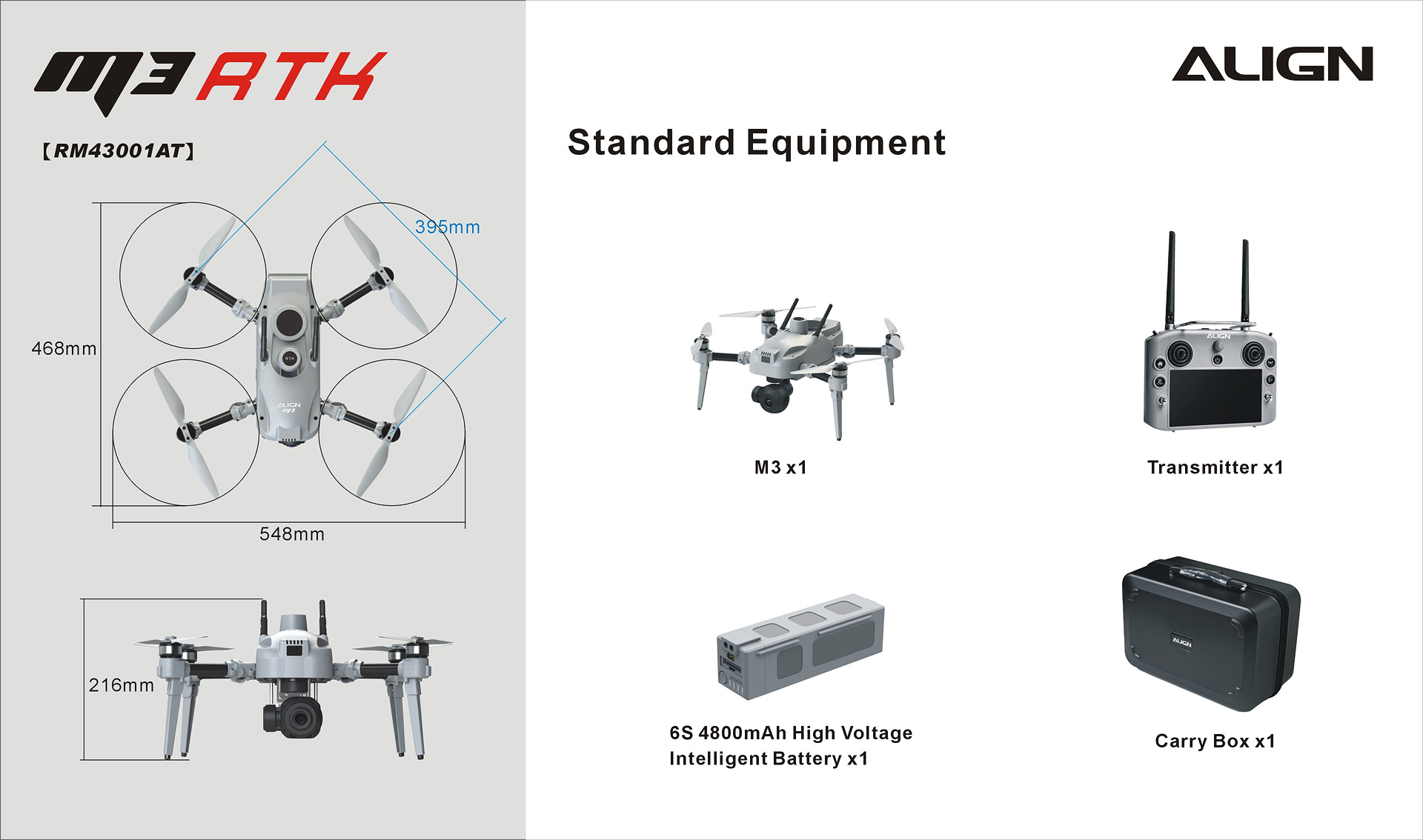

●Dimensions：
       Folded：25x27x15(cm)
       Unfolded：46.8x54.8x21.6(cm)
●Airframe：39.5cm

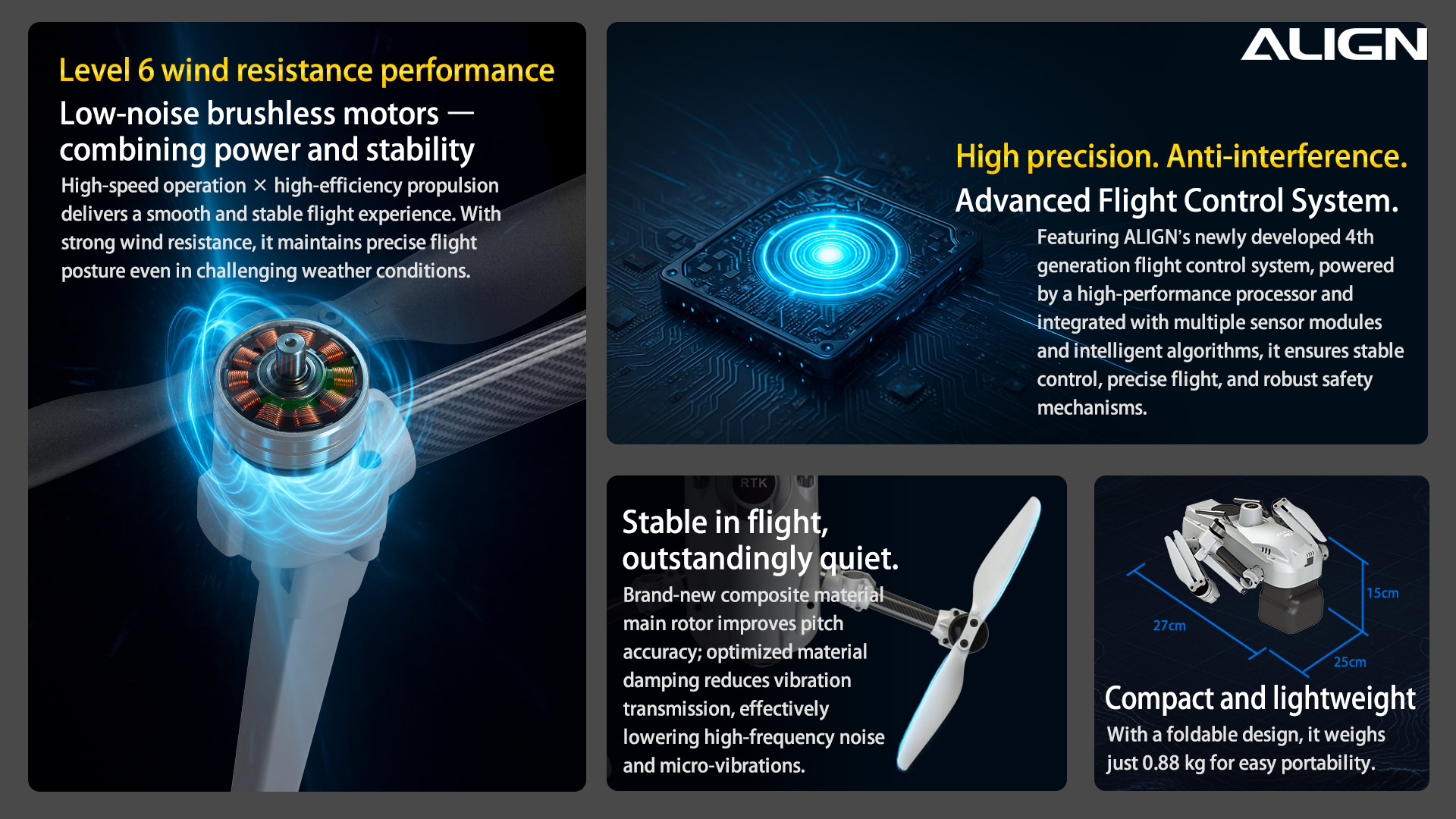

●Foldable propellers：4 inches
●Propeller diameter：22.1cm
●Max. horizontal flight speed：20 m/s（Sport mode）
                             10 m/s（Normal mode）
                             6 m/s（Stable mode）
●Max. ascent speed：5 m/s（Sport mode）
                       4 m/s（Normal mode）
                       2.5 m/s（Stable mode）
●Max. descent speed：3.5 m/s（Sport mode）
                       3 m/s（Normal mode）
                       2 m/s（Stable mode）
●Flight altitude:500m
●Max. takeoff altitude:3000m
●No-Load flight time:25 minutes
●Max. wind resistance speed:12m/s（Level 6 wind）
●Max. tilt angle:25 °（GPS mode）
●Operating temperature range:-10℃ to 45℃
●Satellite navigation system:RTK module with helical antenna
●Hovering accuracy:
               Vertical：±0.5m（under normal GNSS signal）
               Horizontal：±0.5m（under normal GNSS signal）


Optional Equipment

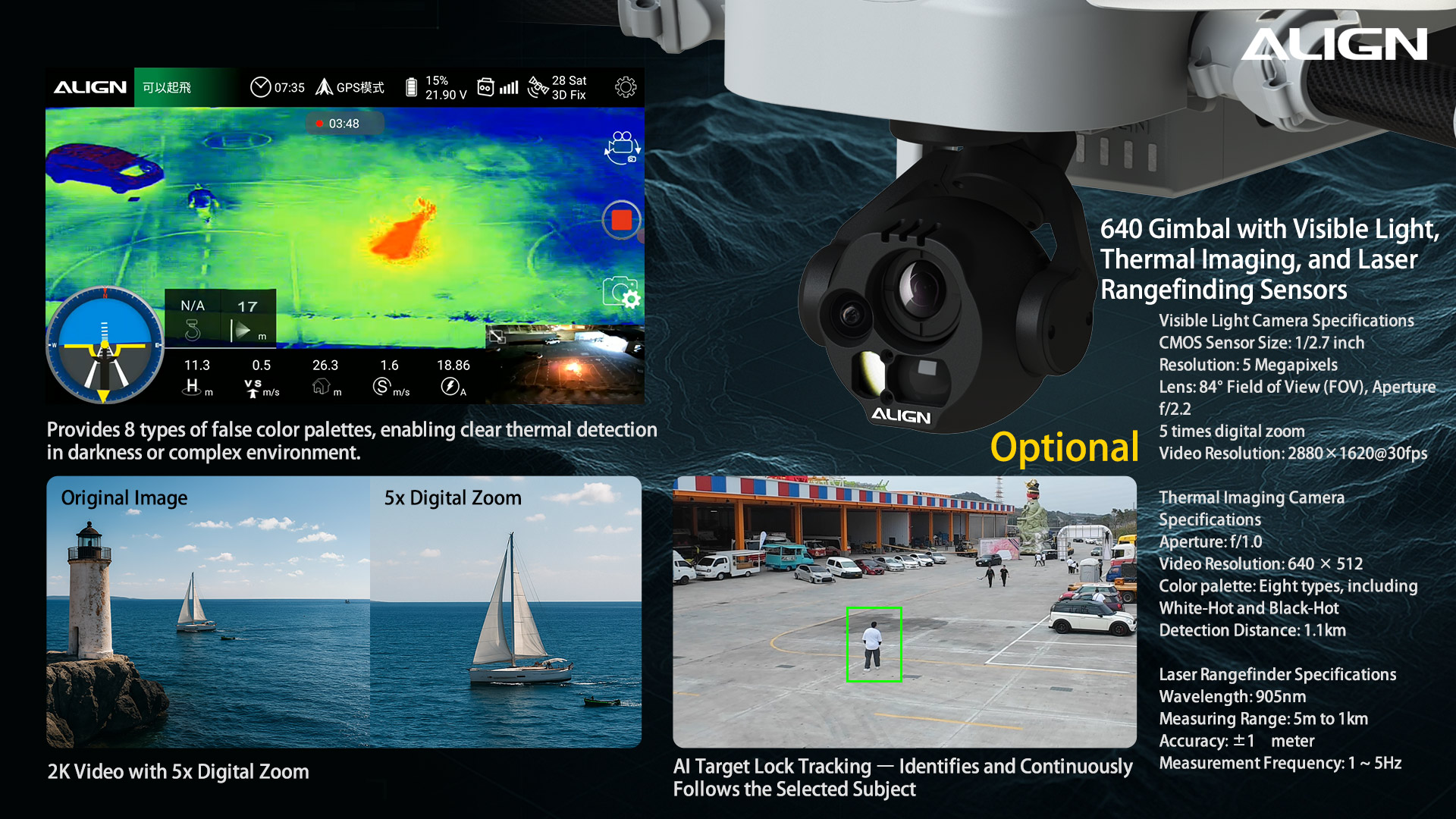

●640 Gimbal with Visible Light, Thermal Imaging, and Laser Rangefinding Sensors









Flight Safety
