Pictures of canopy shown are for illustration purpose only. Actual product may vary due to product would be dispatched randomly.

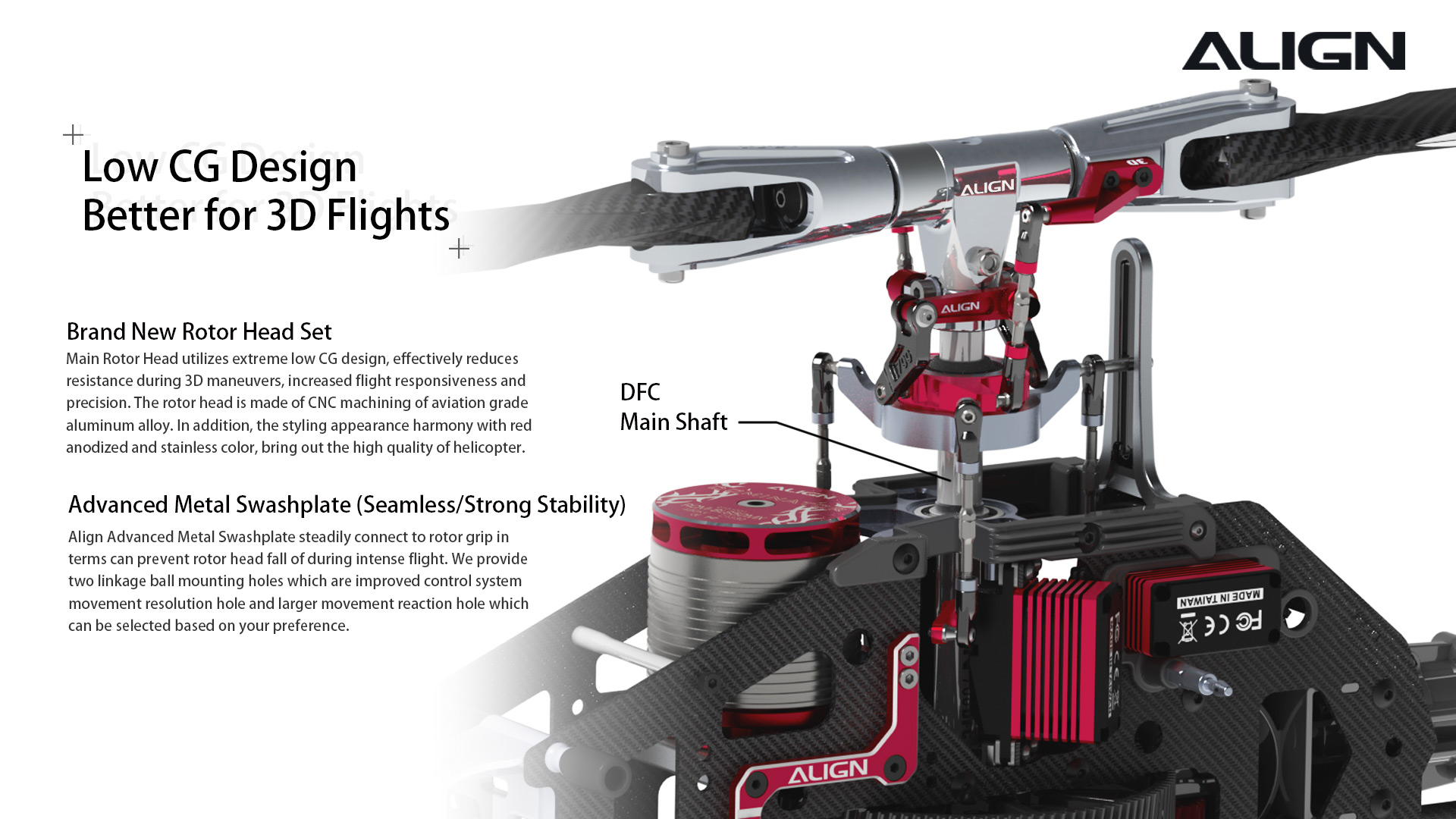

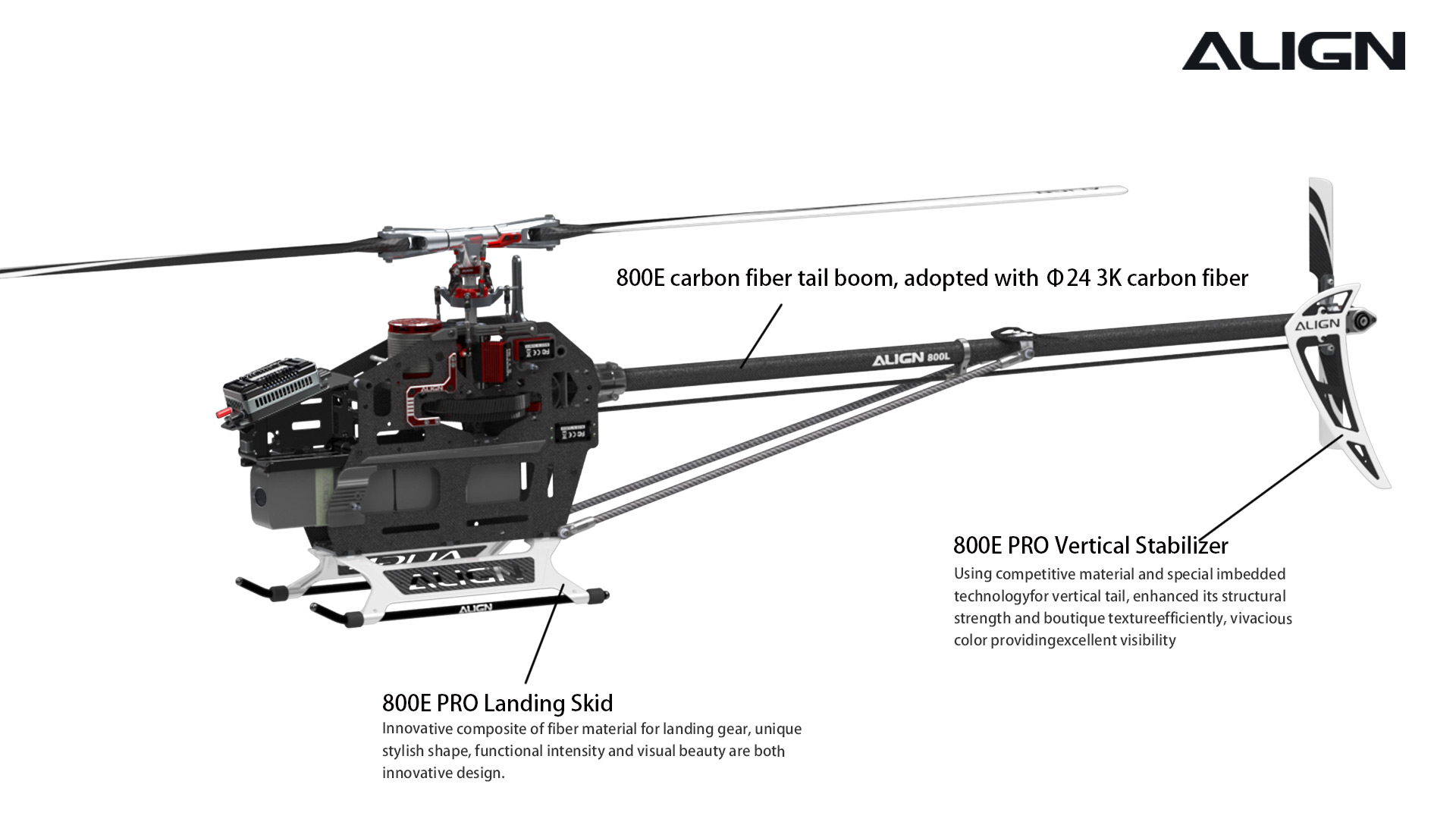

The T-REX 800E PRO is a 800 class flagship designed specifically for 3D flights. The CCPM direct connect servo design, coupled with newly designed FL rotor head assembly, results in fast, precise, and more direct control reaction. The frame material integration technology is utilized on the landing gears and vertical tail fin, creating a unique appearance not only making the T-REX 800E PRO stand out, but also resulting in an innovative design that encompasses structure rigidity along with beautiful aesthetics. - one of the signature highlights of the T-REX 800E PRO.

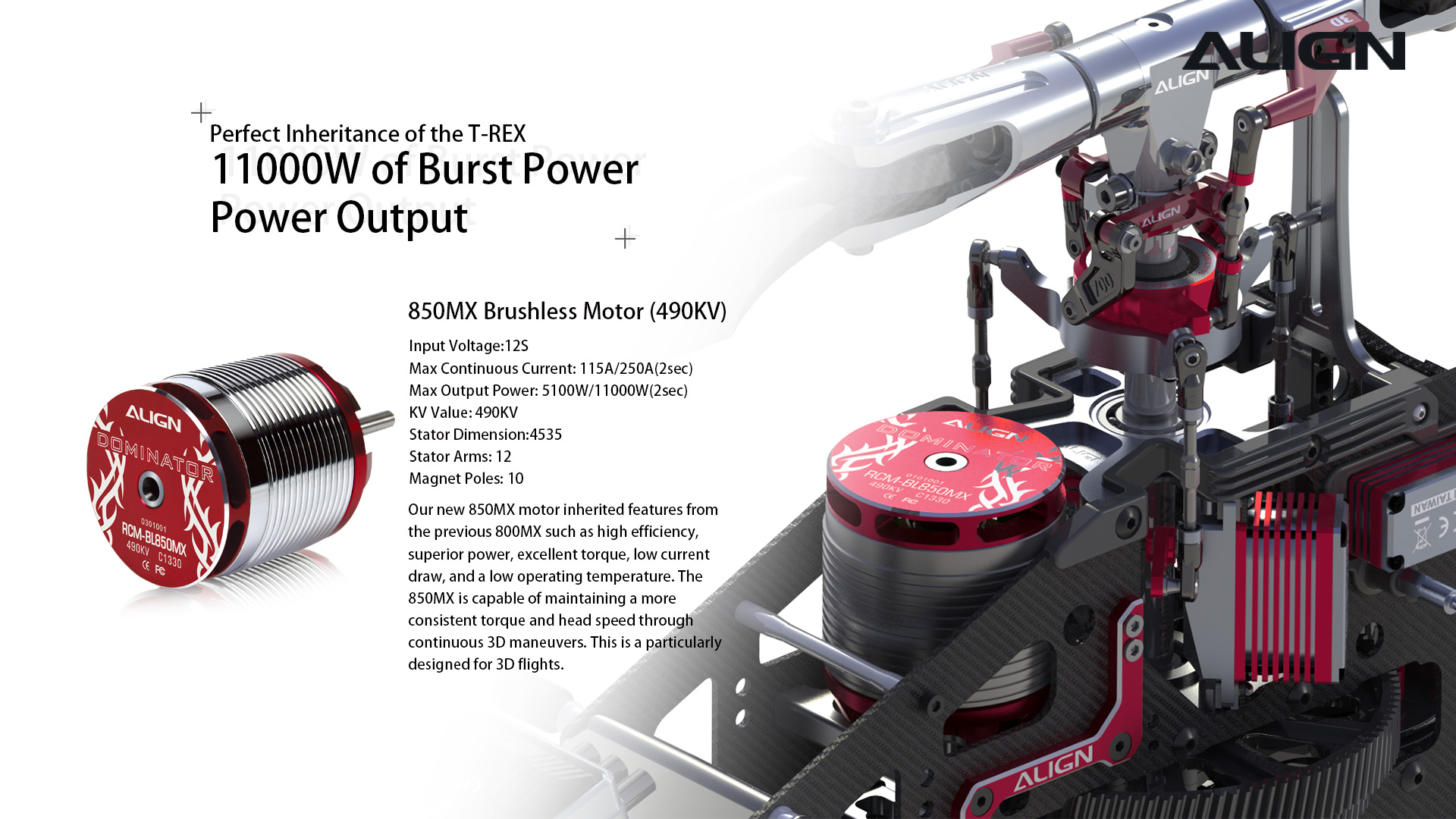

Nothing was spared in the electronics components of the kit: It features the powerful 850MX(490KV/4535) motor paired with RCE-BL260A Brushless ESC speed controller for unparalleled power output; The newly designed DS830M high-voltage brushless cyclic servos and DS835M rudder servo, both housed in CNC-machined aluminum cases, not only showcase premium craftsmanship and aesthetics, but also enhance heat dissipation, offering market-leading performance.
The T-REX 800E PRO can be described as the current top of the line flagship representing Align’s superior product line. Based on the pedigree of pure 3D flight, the newest design concept with absolute top of the line equipment, along with superior aesthetics and attractive lines, the T-REX 800E PRO will definitely elevate the adrenaline in your blood!

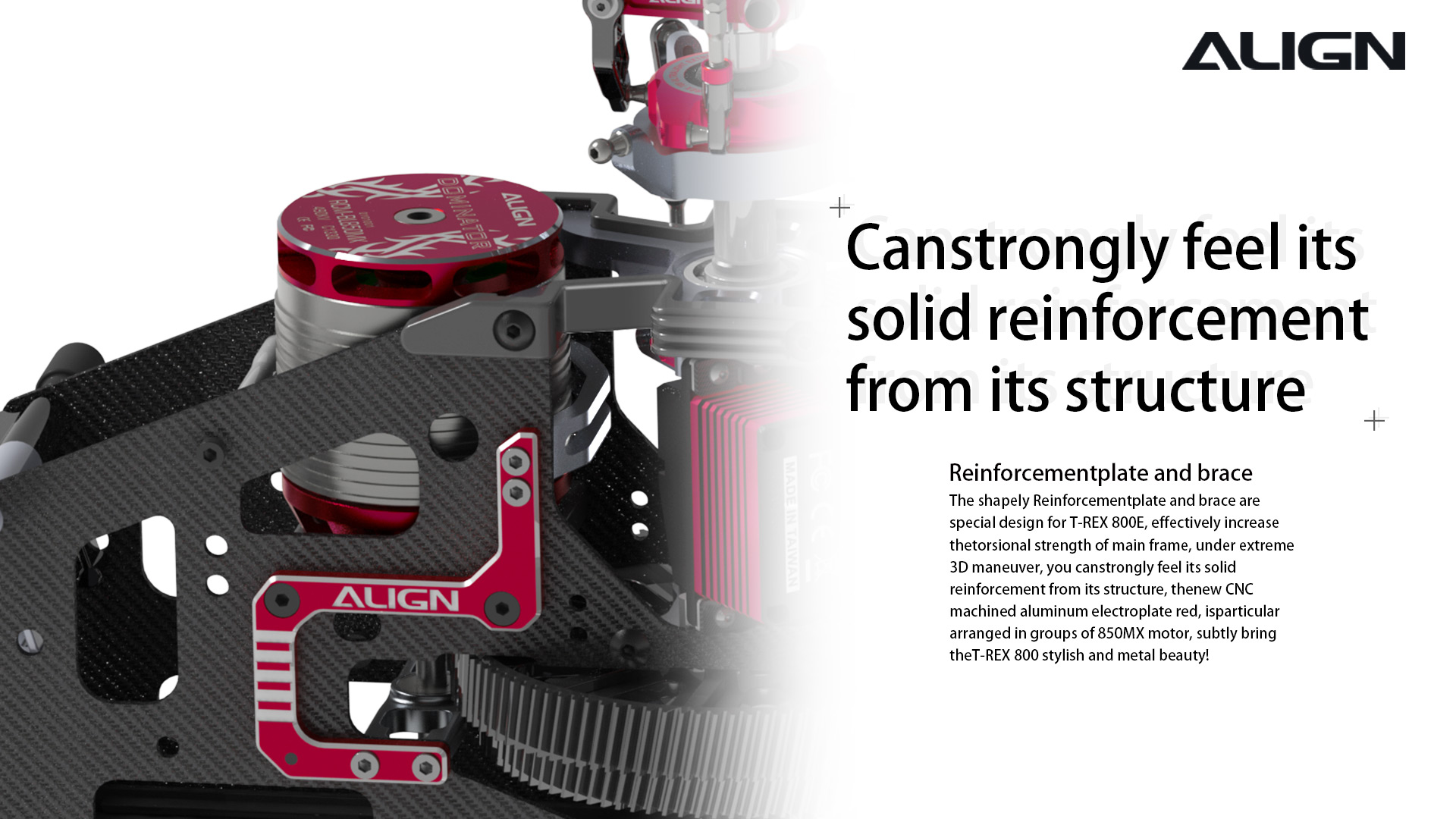

Focus Shots














Standard equipment

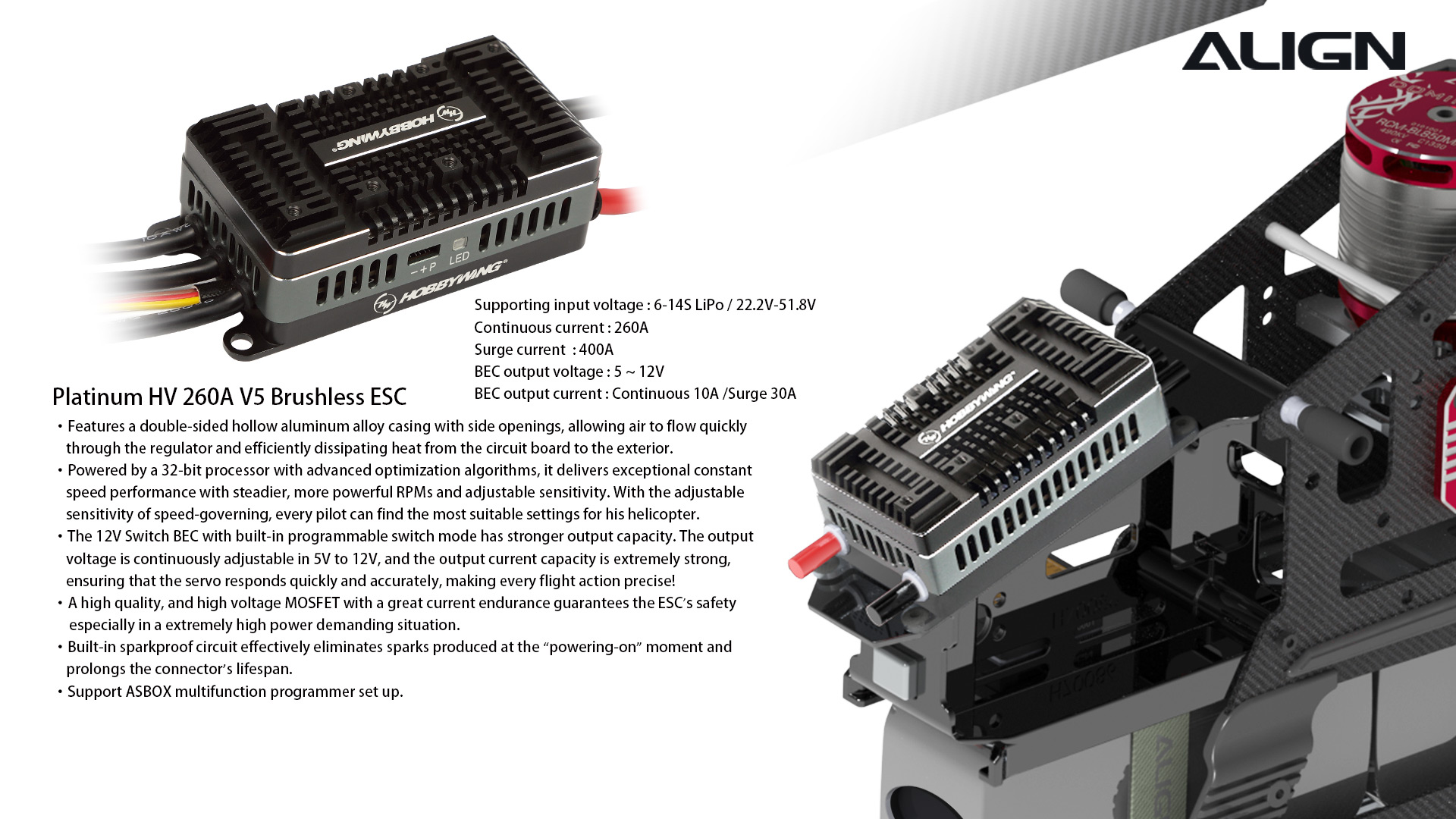

●Platinum HV 260A V5 Brushless ESC
●850MX Brushless Motor(490KV/4535)
●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo
●Microbeast PLUS Flybarless system

Specification

● Length: 1490mm
● Height: 402mm
● Width: 204mm
● Main Blade Length: 780mm
● Main Rotor Diameter: 1740mm
● Tail Rotor Diameter: 301mm
● Motor Drive Gear:12T

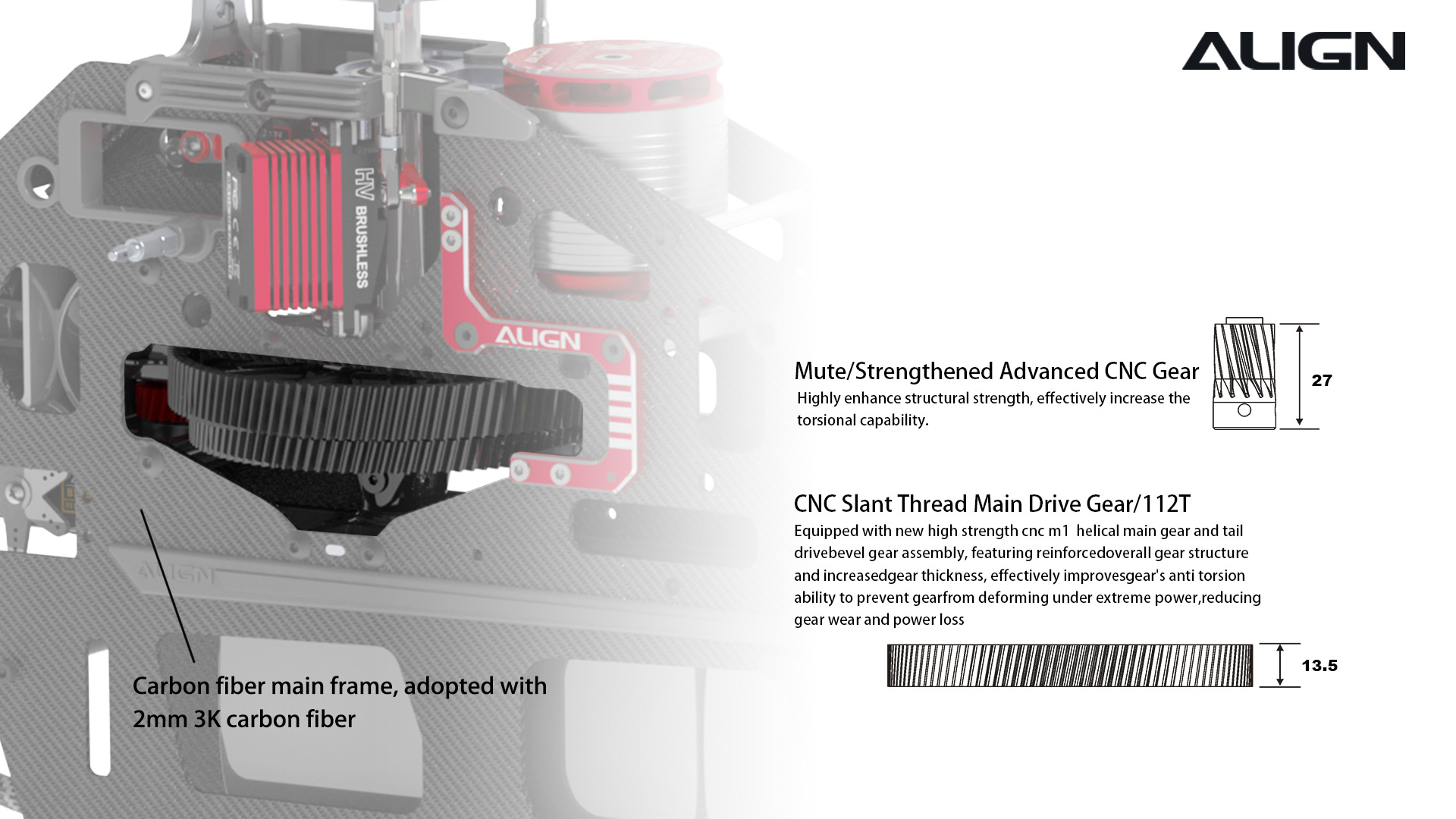

● Main Drive Gear:112T
● Autorotation Tail Drive Gear: 104T
● Tail Drive Gear: 22T
● Drive Gear Ratio: 9.33:1:4.73
● Weight(With Motor): 4100g

Accessories

●T-REX 800E PRO Kits Set x 1
●780 Carbon Fiber Blades x 1 set
●115mm 3K Carbon Fiber Tail Blades x 1 set
●850MX Brushless Motor(490KV/4535) x 1
●DS830M High Voltage Brushless Servo x 3
●DS835M High Voltage Brushless Servo x 1
●Platinum HV 260A V5 Brushless ESC x 1
●Microbeast PLUS Flybarless system x 1 set


Radio transmitter and electronic equipment required for assembly

●Transmitter(6-channel or more, helicopter system)
●Receiver(6-channel or more)
●6S Li-Po 4500 ~ 5200mAh x 2
